We provide agile fabrication services by a dynamic and flexible fabrication line and a variety of equipment tailored to to acheive  maximum efficiency. A combination of indoor overhead cranes and outdoor gantry cranes in 10,000 square meter space enable us to undertake several equipment fabrication projects concurrently.

Having served all clients in highest level of quality expectations and specifications such as Iranian oil & gas, petrochemical and power plant authorities, a systematic and inclusive quality assurnace and control system has been incorporated in our fabrication processes and procedures as well as all supporting activities in accordnace with ASME Code and ISO 9001 Standard.

More information on our capabilities and equipment are presented in the following tables and charts.

Equipment List

Item	Description	QTY
1	CNC Cutting Machine with 6X2m Table	1
2	Plate Bending Machine - Bending Capacity T=30, W=2600 mm	1
3	Plate Bending Machine - Bending Capacity T=20, W=2200 mm	1
4	Plate Bending Machine - Bending Capacity T=15, W=2000 mm	1
5	800 Ton Hydraulic Press – Forming up to 60 mm Thick Plates	1
6	Spinning Machine - Forming Heads up to 45 mm in thickness and 8 meters in diameter	1
7	400 Ton Hydraulic Press - Forming up to 25 mm Thick Plates	1
8	Spinning Machine - Forming Heads up to 20 mm in thickness and 4 meters in diameter	1
9	200 Ton Hydraulic Press - Forming up to 20 mm Thick Plates	1
10	Automatic Beveling Machine	1
11	Truck Type SAW Machine	2
12	Grinding Machine 3x1 m	2
13	Grinding Machine 1x0.7 m	1
14	Self Aligning Welding Rotator (40 Tons)	4
15	Self Aligning Welding Rotator (10&15 Tons)	4
16	Welding Rotator (40 Tons)	5
17	25 Ton Gantry Crane	2
18	10-Ton Over Head Crane	2
19	5-Ton Over Head Crane	2
20	7-Ton ForkLift	1
21	4-Ton ForkLift	1
22	Rectifier (SMAW)	25
23	Rectifier (TIG/MIG)	10
24	Radial Drilling Machine Up to Ø50 Drilling Capacity	1
25	Vertical Drilling Machine Up to Ø35 Drilling Capacity	1
26	Automatic Plasma Cutting Machine	2

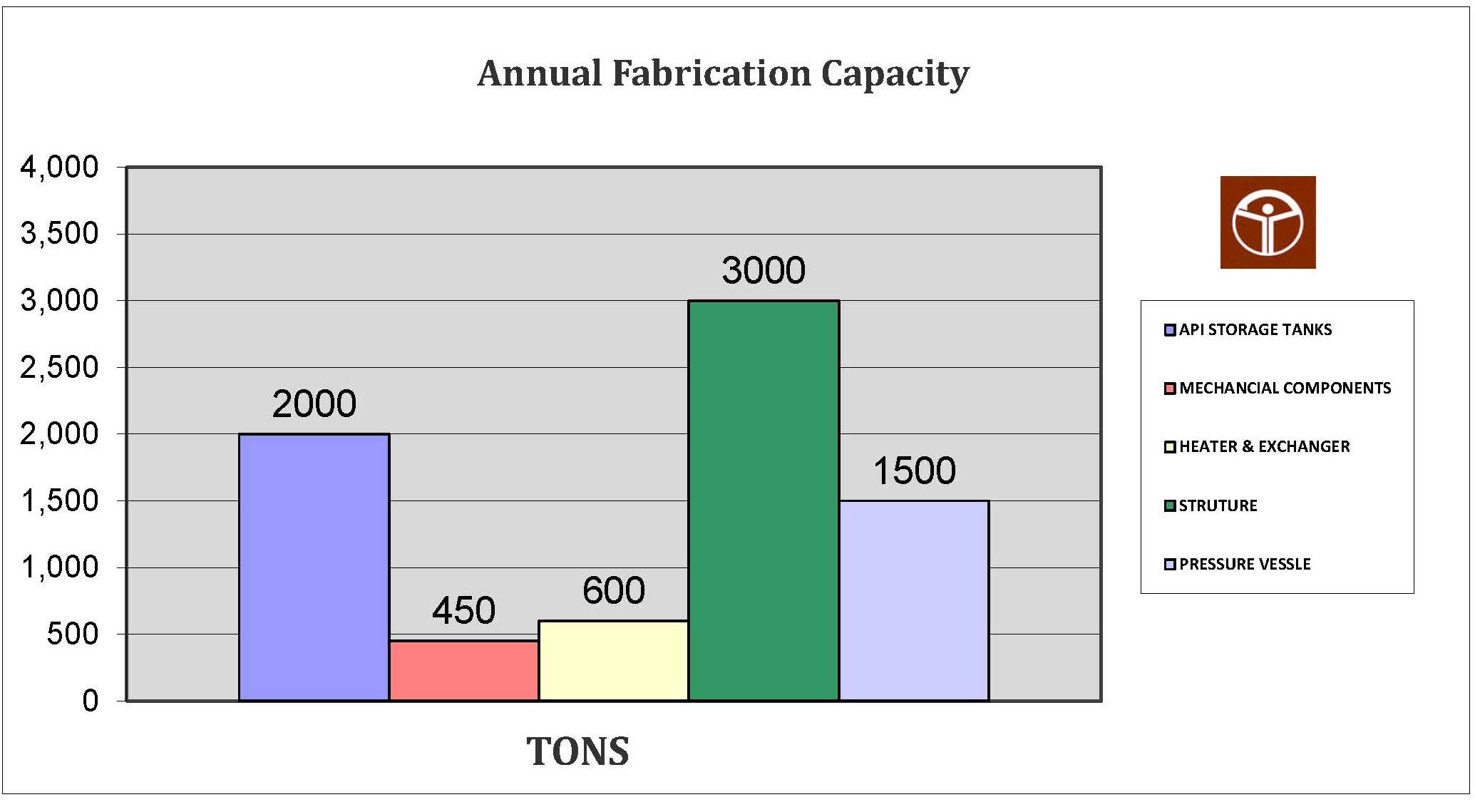

Fabrication Capacity
